The RIKUTEC drum has a multi-layer wall structure and is manufactured under high-purity production conditions using the co-extrusion blow moulding process. Special HDPE types are used for these drums. The inner layer does not contain any additives and or stabilizers. The result is a high purity drum with lowest metal and particle content. The special design of the drum enables high pressure and vacuum resistance and thus maximum safety during storage and transport.

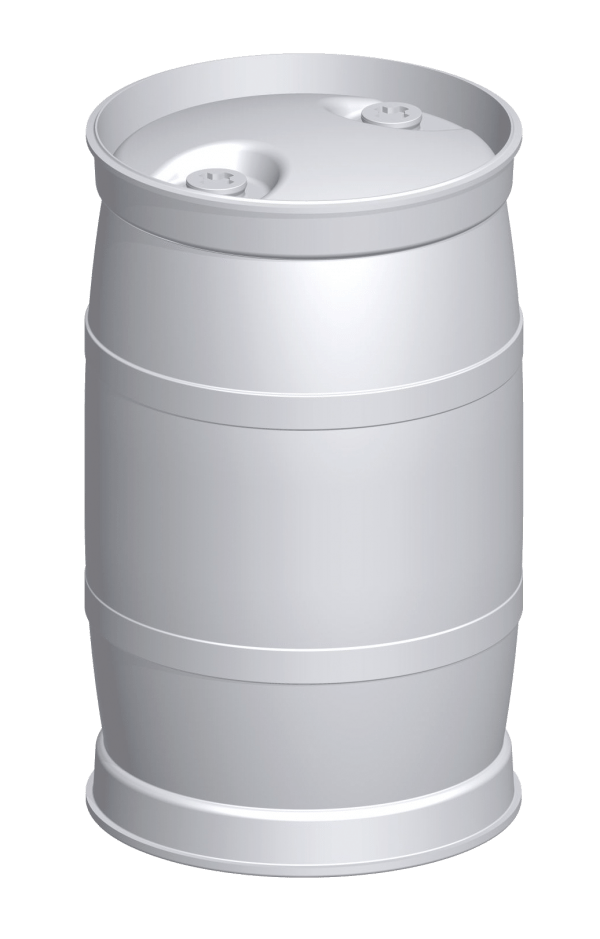

UC drum, high purity
- high-purity drum with lowest metal and particle content,
- no additives and stabilizers on the inner layer,
- high-pressure and vacuum resistance,
- double L-ring for safe handling and stability
- outer layer: HDPE with UV stabilizer
- UN approved for many process chemicals
- QC sampling system approved
- heavy version specifically designed for the use of ammonia
| Volume | 200 ltr. |
|---|---|
| Diameter | 22,83 in |
| Height | 37,80 in |
| Weight | 31,97 lb |
| Fill opening | 2 x S62 x 0,20 in |
Data sheets
UC drum, heavy and high purity
- high-purity drum with lowest metal and particle content,
- no additives and stabilizers on the inner layer,
- high-pressure and vacuum resistance,
- double L-ring for safe handling and stability
- outer layer: HDPE with UV stabilizer
- UN approved for many process chemicals
- QC sampling system approved
- heavy version specifically designed for the use of ammonia
| Volume | 200 ltr. |
|---|---|
| Diameter | 22,84 in |
| Height | 37,80 in |
| Weight | 5,27 lb |
| Fill opening | 2 x S62 x 0,20 in |
Data sheets

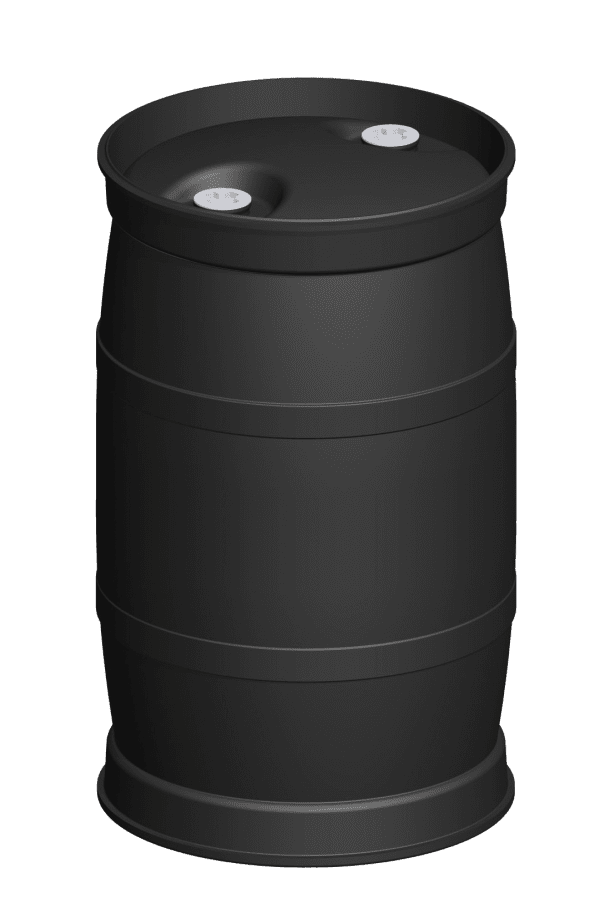

UC drum, conductive
- high-purity drum with lowest metal and particle content,
- no additives and stabilizers on the inner layer,
- high-pressure and vacuum resistance,
- double L-ring for safe handling and stability
- outer layer: conductive HDPE with UV stabilizer (≤ 10-6 Ω)
- for flammable liquids
Benefits:
- high-purity inner container
- lowest metal and particle content
- no bottom leakage
- reusable drum
- no corrosion
- UN-authorised
| Volume | 200 ltr. |
|---|---|
| Diameter | 22,84 in |
| Height | 37,80 in |
| Weight | 35,27 lb |
| Fill opening | 2 x S62 x 0,20 in |
Data sheets

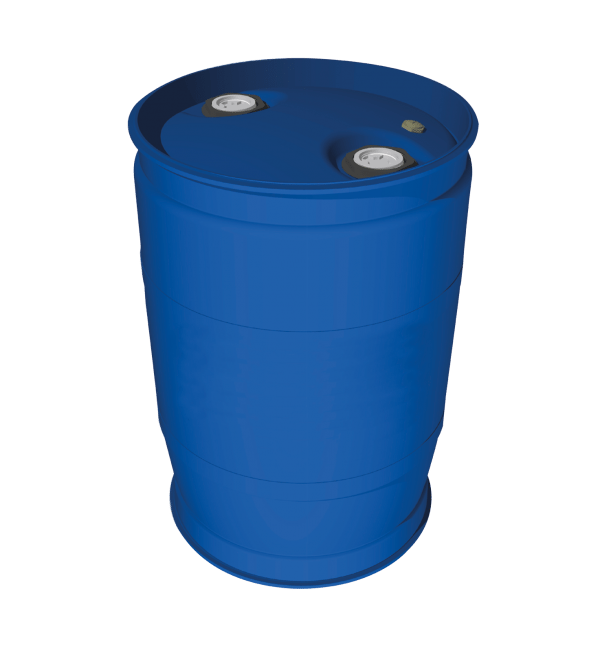

TWIN – drum, double-walled drum for packing group I
- the first all-plastic combination drum
- no additives and stabilizers on the inner layer
- no pressure and vacuum resistance
- absorbs shock and drop energy
- transport and products in a high-purity environment
- safe transport of highly aggressive chemicals
- QC sampling system approved
- cover made of HDPE
| Volume | 200 ltr. |
|---|---|
| Diameter | 22,84 in |
| Height | 37,91 in |
| Weight | 35,05 lb |
| Fill opening | 2 x S62 x 0,20 in |
Data sheets
