Drum

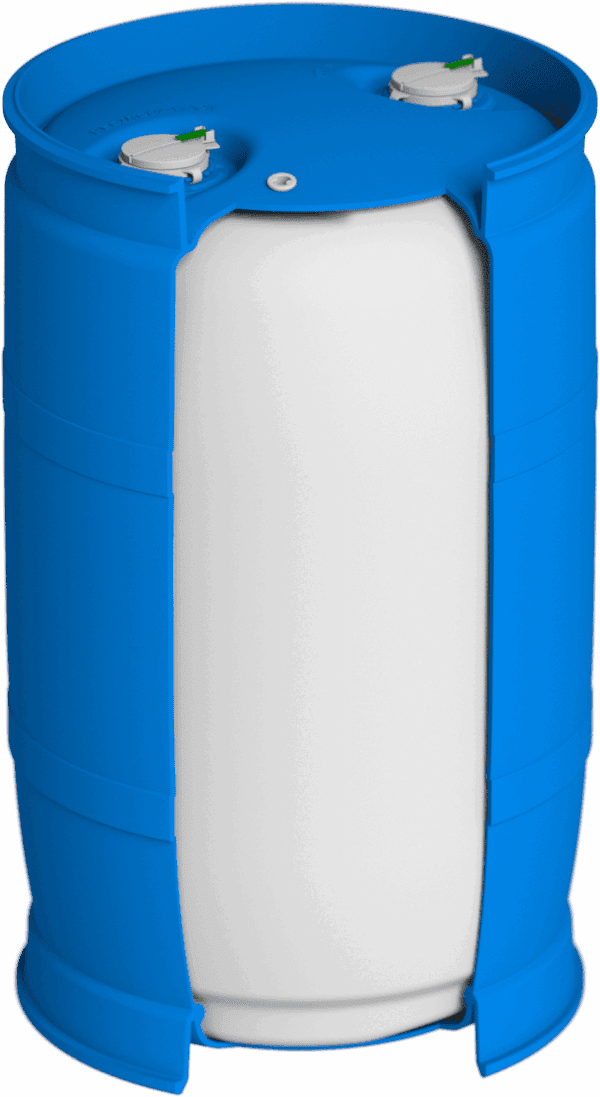

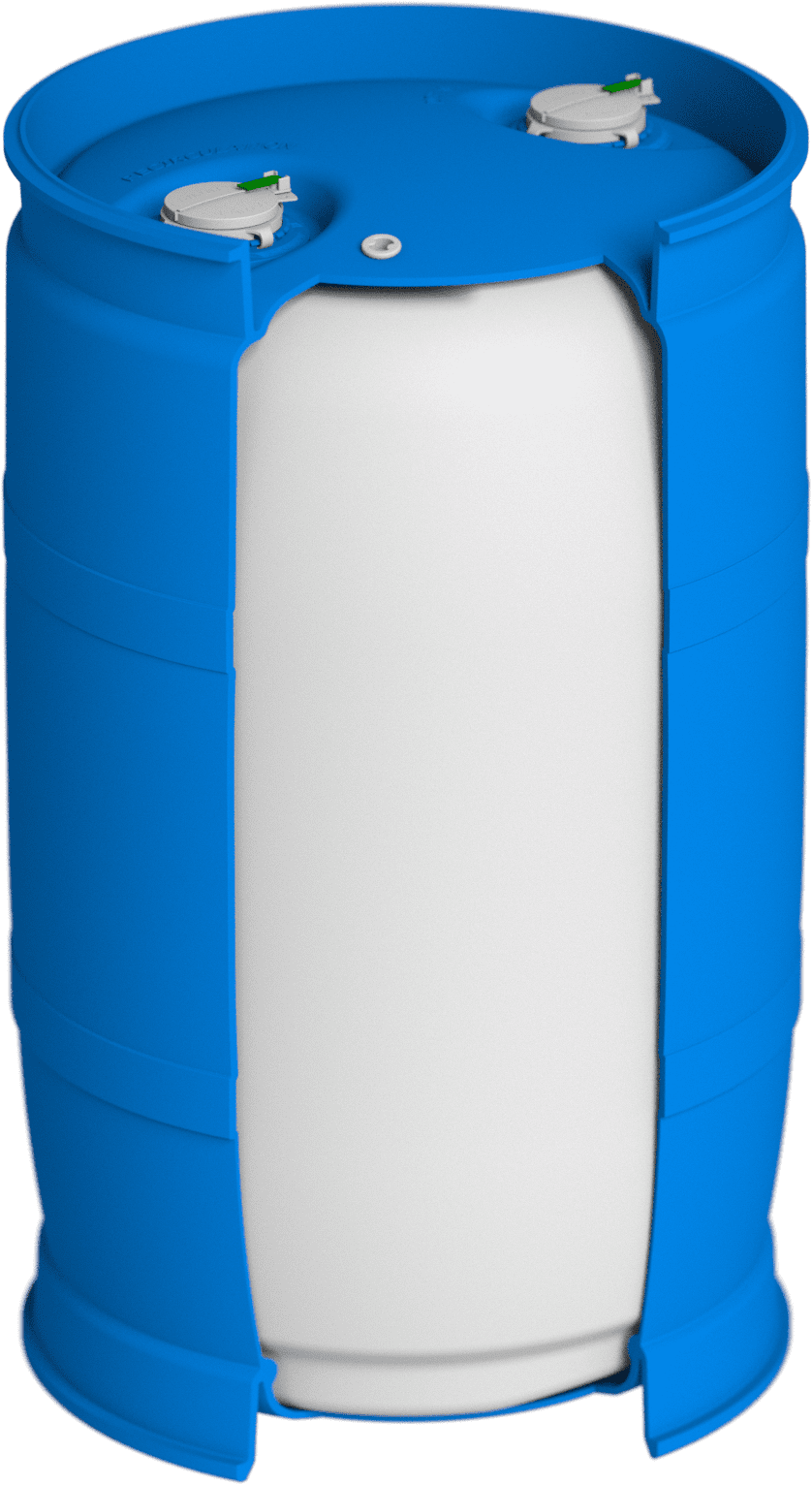

TWIN Drum 2.0

With our TWIN DRUM 2.0, we provide a high-quality, reusable, double-walled drum for hazardous liquid chemicals. Thanks to its ultra-clean inner surface, it is ideally suited for high-purity applications in the chemical, pharmaceutical, and semiconductor industries.

Advantage / application Accessories / Equipment Technical specifications Advice & help Brochure Brochure

Advantage / application

TWIN Drum 2.0

  • Semiconductor-grade purity: Ultra-low trace metals and particles (< 100 ppt)

  • Unique traceability label: Reliable and tamper-proof identification

  • Double-walled with secondary containment: Maximum safety and leak protection

  • Comprehensive environmental protection: Shields against external contamination

  • Double L-ring design: Improved handling and stability

  • Space-saving & stackable: Ideal for efficient storage and transport

  • Easy-to-clean inner surface: Supports safe and residue-free refilling

  • UN certified: Approved for Packaging Group I (X) and II (Y)

  • Test pressure: 320 kPa: Robust and pressure-resistant

  • Specially engineered for Nitric Acid: Material and design tailored for corrosive contents

Test pressure: 320 kPa

Ultra-low particle level – <100 ppt

UN & DOT certified – Packaging Group I (X)

Secondary containment

Multiway Solution
ALL PLASTIC CONTAINER
  • No steel components
  • Corriosion-free
  • Energy absorbing
100% RECYCLABLE
  • Only one construction material – easy to remanufacture
  • Reusable container
Highest safety standards
  • Secondary containment
  • UN-certified

Accessories / Equipment

TWIN Drum 2.0

Dip tube, non-conductive
DISPENSE/FILL HEAD, NON CONDUCTIVE
UNIVERSAL BUNG WRENCH, NON CONDUCTIVE
Dip tube, non-conductive
  • for POLY IBC
  • for UC drum
  • option to equip with bellows for minimum heel
  • Key Code system
DISPENSE/FILL HEAD, NON CONDUCTIVE
  • for POLY IBC UC/UC-S 1000
  • for UC barrel
  • filling and disepense with simultaneous ventilation of the container
UNIVERSAL BUNG WRENCH, NON CONDUCTIVE
  • for safe opening and locking of immersion tubes and screw plugs

Technical specifications

Standard colours Blue
Nominal capacity 200 liter / approx. 53 gal.
Height 580 x 960mm / approx. 22.9 in. x 37.6 in.
Bungs 2x S62 x 5mm (1 vented and 1 non-vented)
